AC motors
The AC motors are provided with all globally relevant markings and are available in all important voltage variants. The asynchronous motors are mainly designed for one direction of rotation; induction reversing motors for a faster change of direction are also available. The latter have a high starting torque and a built-in friction brake, but are designed for operating cycles of 30 minutes continuous operation. The optional tachogenerator built into the AC motors allows a wide speed range. The simple design combines high reliability with a favorable price, which makes these drives interesting for numerous applications.
Torque motors (TM series) are particularly suitable for winding applications that operate at a constant speed and material tension due to their special characteristics. With reversible motor rotation, they can also be used as brakes to maintain a constant tension during winding.
In the field of AC motors, Oriental Motor also offers the right solution for extreme conditions. The FPW series offers protection class IP67, meaning that these motors can even withstand immersion. They have a special oil-resistant casing and a stainless steel shaft. The waterproof terminal box on these motors is not located directly on the housing, but on the cable, which is also waterproof.
If you are looking for reliable motors that can be used in different locations around the world, Oriental Motor has the perfect solution with the World K-Series the answer. These high-performance models are compatible with the main international safety and voltage standards of each country and region, and are available in a range of configurations, gearbox types and accessories.
Thanks to the combination of a heavy-duty gearbox with a highly efficient motor, the series KII and KIIS the highest performance in standard AC motors. The optimal magnetic design and the use of specialized components have reduced losses by 32% and power consumption by 28W compared to conventional models. By reducing heat generation by up to 20°C and vibrations by up to 35%, the reliability of the device has increased significantly.
Features
- Power: 6 - 200 W
- Flange size: 60 - 104 mm
- Operating voltage: 115 - 400 V
- Marking: CE, UL and cUL
- optional brake
- jet-proof motors IP67
- Gearbox/right angle gearbox with 20 different reduction ratios
from 1:3 to 1:180 or with decade block up to 1:100,000 - controllable single-phase motors
BLDC motors
The brushless DC drives with speed control are very compact. The Series BLU and BLH are multifunctional, the BLU series is easy to operate thanks to plug & play. All types have protective functions such as overload with alarm signal and motor stop.
The BLV-R series is kompact, lightweight and powerful, especially for compact devices.
The compact, highly efficient BMU series connects a BLDC motor and a driver with a digital display and intuitive operation directly with each other thanks to a new type of connector with intelligent wiring. The easy handling and simple speed monitoring sets new standards in drive technology.
The BLE2 series is the successor to the BLE series. The motor, driver and cable have been redesigned while
the original advantages of brushless DC motors are retained.
BLE2 is easy to use, highly functional and shows its advantages in every application.
The BL 750W brushless motor can be connected to an inverter, is more compact and lighter than three-phase motors with the same output and achieves energy efficiency class IE5.
Stepper motors and systems
The 2-phase stepper motors feature high precision and reliability without the need for position detectors. Other features include the wide product range, high torque, low vibration and low noise.
The RK series is a 5-phase stepper motor with microstepping, which guarantees low vibrations (smooth drive). The gearbox types with harmonic, planetary and bevel gears enable high positioning accuracy. A type with electromagnetic brake (fail safe) is also available. Other 2-phase and 5-phase stepper motor systems are also available.
The Alpha-Step stepper motor system enables positioning without step loss and with short response times. Gearbox types with harmonic, planetary and bevel gears are also available, as is a type with an integrated controller.
Features
- High-resolution types
- IP65 - types with terminal box
- Motor types with large inertia capacity
- Motor types for fast response
- Gear types (planetary, bevel, harmonic drive)
AZ Series (Alpha-Step)
are stepper motors that offer a unique control system that combines the advantages of open and closed control loops. The position of the motor is constantly monitored and it can automatically switch between the two control modes depending on the conditions. Normally it operates in open loop and is activated synchronously with the commands, ensuring high responsiveness. In the event of an overload, the motor position is corrected and it operates in closed loop. These motors combine user-friendliness with reliability.
The AZ series includes the following products:
- Alpha-Step stepper motors
- AZ series with Neugart gearbox
- AZ FC gearbox
- Plug connection for motors with flange dimensions 42 and 60 mm
- Fieldbus driver
- Multi-axis driver
- Slim multi-axis driver
- Mini driver
- Mini driver
with Ethernet interface
PKP series
PKP series
with encoder
CVD series
Bipolar driver for 2
Phase stepper motors
Driver for 5-phase stepper motors
DC voltage
Compact
Low vibration
Servo motors
Oriental Motor's NX Series AC servo motors combine high-precision positioning with ease of use.
The servo motors are ideal for applications with high inertia loads or for belt drives; no manual adjustment is necessary
Features
- Standard types, as well as types with PS or PJ planetary gearboxes
- Frame size: 42 mm - 104 mm
- Output power: 50 W - 750 W
- Auto-tuning function
- Protection class: IP65
AZX series
- 400-600 W
- Absolute sensor
- High torque in the high speed range
(EtherCAT, EtherNet/IP)
Linear and rotary actuators
The DRLII Series is the combination of a high-resolution stepper motor with a ball screw, resulting in very high precision (repeatability 0.002 mm). The design allows a lot of space saving (smallest motor: 20 mm flange, length 58 mm, weight 180 g), furthermore the assembly effort is considerably simplified e.g. by omitting a coupling.
- Flange size: 20, 28, 42 and 60 mm
- maximum stroke: 50 mm
- Maximum axial load: up to 300 N
- max. speed: up to 32 mm/s
- Repeat accuracy with ground spindle: 0.002 mm
- optionally with brake and handwheel
- optional without guide
EZS - motorized linear slides
The EZS Series is a linear guide with motorized carriage. The carriage and table are driven by a ball screw. The system is particularly suitable for positioning tasks, for example in the semiconductor industry, in the food and packaging industry, in weighing systems and in conveyor technology. The system moves at speeds of up to 800 mm per second. With a repeat accuracy of 0.02 mm, EZS can transport up to 60 kilograms. The running parallelism is 0.03 mm. Simple cabling and assembly contribute to user-friendliness, as do long maintenance intervals.
The rail lengths range from 50 to 850 millimeters in 50 millimeter increments.
The optional program functions such as setting, test mode or the display of I/O signals can be executed or read on the control panel.
- Maximum stroke: 850 mm
- Maximum speed: 800 mm/s
- Maximum load: horizontal 60 kg, vertical 30 kg
- Repeat accuracy: 0.02 mm
- Power supply: 24 VDC or 230 VAC
Mounting adapter for linear actuators
The use of a mounting adapter for linear actuators saves space due to the reduced number of parts. The time required for the
installation and the accuracy setting can also be reduced.
This means that the system can be put into operation in a shorter time.
Features
- Linear motion mechanism with lead screw and plastic nut
- Simple installation without coupling to an Oriental motor
Stepper motor - For the 42 mm size, the thrust force and the self-locking force are
max. 100 N - save space and reduce construction time compared to a customized
Reduce mechanism.
DGII - Hollow shaft rotary tables
At the DGII Series it is a compact Rotary actuator With extreme positioning accuracy even with changing loads. The advantages are: Possibility of direct drive, easy cable or hose feed-through thanks to the generously dimensioned opening in the rotary table and the short response time. A reference point can be set by means of the optional sensor
The DGII series was developed for Universal Robots UR+ certified. The software is available for download at URCap.
- Flange size: 60, 85, 130 and 200 mm
- max. speed: 200 min-1
- max. axial load: 4,000 N
- max. holding torque: 50 Nm
- Resolution microstep: 0.002 - 0.04 per step
- Repeatability: 0.004 mm
- Operating voltage: 24 VDC or 230 VAC
- Marking: CE, UL and cUL
- optional with sensor
- Encoder output
DH Series - Hollow shaft rotary tables
This actuator is a 5-phase stepper motor with a hollow profile. Hoses, cables and light beams can be routed through the hollow part, which contributes to a simpler, modern design as well as smaller and lighter devices.
L-AZ - Rack and pinion drives with absolute sensor
By combining a rack-and-pinion mechanism with the Alpha Step Closed Loop stepper motor-driver combination, the L-AZ Series a high positioning accuracy and thrust force. This results in a fast linear motor with high thrust force that can perform operations such as pushing, pulling, lifting and lowering in limited available space.
- Flange size: 60 and 80 mm
- Maximum stroke: 1,000 mm
- Maximum speed: 500 mm/s
- Maximum transportable mass: 100 kg
- Power supply: 230 VAC
Fan
Oriental Motor's fan program includes:
- Axial fan for ventilation and cooling
- Centrifugal fans for precise cooling and
- Cross-flow fan for wide-area cooling
Fans with special functions such as alarm function and speed control are also available.
Axial fan
The air is moved by impellers, cooling the environment. Axial fans can be used to generate a high air flow. They are therefore best suited for ventilating complete plants. The axial fans are available with AC or DC nominal voltage, with alarm function or with peripherals as a complete filterfan unit in the new FM series.
Radial fan
If cooling is only required on a specific position or part, radial fans are a good choice. The static pressure is high and the air flow is concentrated at specific points. One application of radial fans is the cooling of workpieces after heat treatment. The high pressure is also needed when the air flow must pass through extra strong filter material.
Cross-flow fan
The cross-flow fans generate a wide, uniform air flow and are therefore very suitable for cooling in production lines when the air flow is directed from above onto the conveyor belt. Cabinets with electronic devices can also be cooled well with this fan principle.
- IP43/IP55 filter fan, 3 hood sizes
- Axial fans in the sizes
42 - 250 mm - Centrifugal blower with a disk diameter of
50 - 160 mm - Tangential fans: length 150 / 300 mm
- Power supply: 12 / 24 VDC, 110 / 230
- Versions with a service life of 100,000 hours
- Marking: CE, UL and cUL
Encoder
Incremental encoder
The small, thin and lightweight incremental encoder enables installation in the tightest of spaces, and despite its small size, the product line offers resolutions from 100 to a maximum of 4000 P/R.
Three types of output circuits are available: Line driver output, voltage output and open collector output.
It can be used in environments with high temperatures of up to 85 °C.
The actual position, speed and direction of rotation of the mechanism can be detected
By attaching a rotary encoder to the mechanism, a predictive maintenance system can be set up for the mechanism
Features
- Outer diameter Ø 30 mm and Ø 40 mm
- Resolution from 100 to 4000 P/R (14 versions)
42 - 250 mm - Line driver output, voltage output,
Open collector output - Weight: 33 g
(With a diameter of
30 mm and with round shaft)
Industrial robots
OVR series

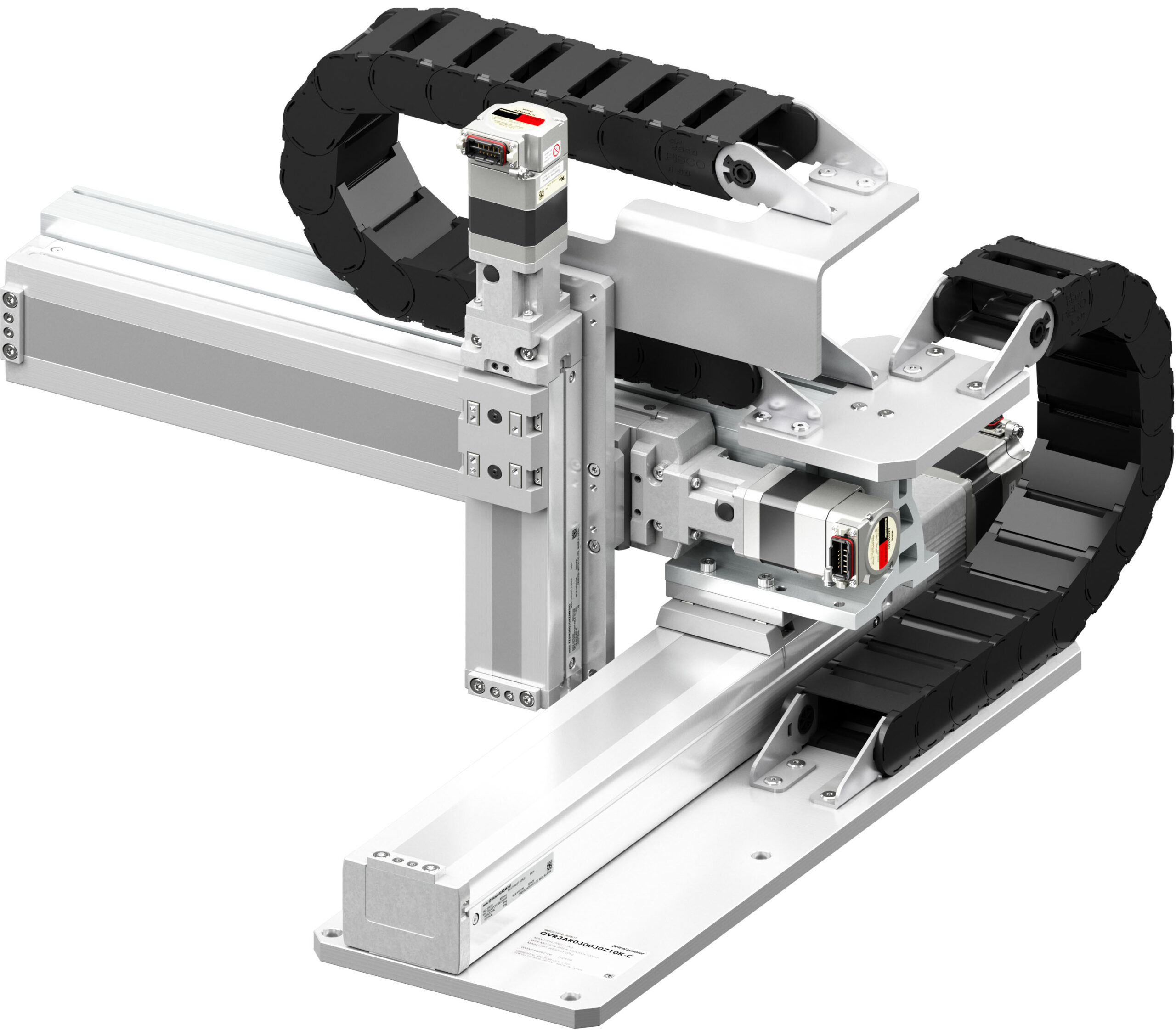

The OVR series includes SCARA robots, small horizontal transport robots with 4, 5 and 6 axes as well as Cartesian/gantry robots with a simple mechanism that is easy to control and cost-effective to design. They are controlled by the MRC series controller and AZ series motor drivers.

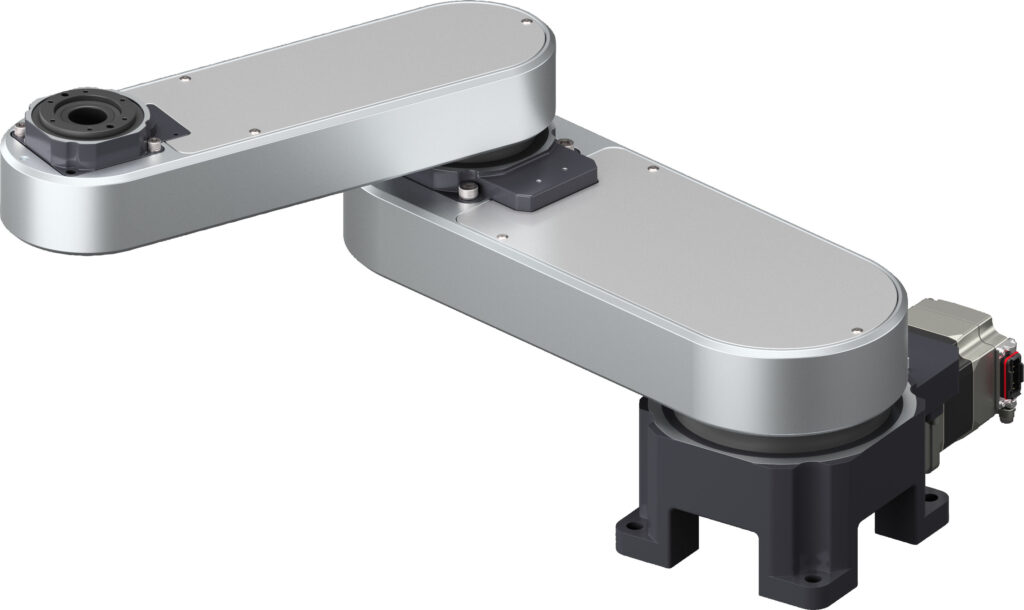

4-axis articulated arm robot
The small horizontal transport robots of the OVR series with 4, 5 and 6 axes have a simple mechanism that is easy to control and inexpensive to construct. They are controlled via the MRC series controller and the AZ series motor drivers.
Main features
- Light and flat
- Third arm can be freely designed by the customer
- Max. Reach 410 mm/ 460 mm/700 mm
- Max. Transport load 3-10 kg
- Use of the AZ series with integrated, battery-free absolute encoder (for DC power supply)
- Combined with electric linear guides on three axes

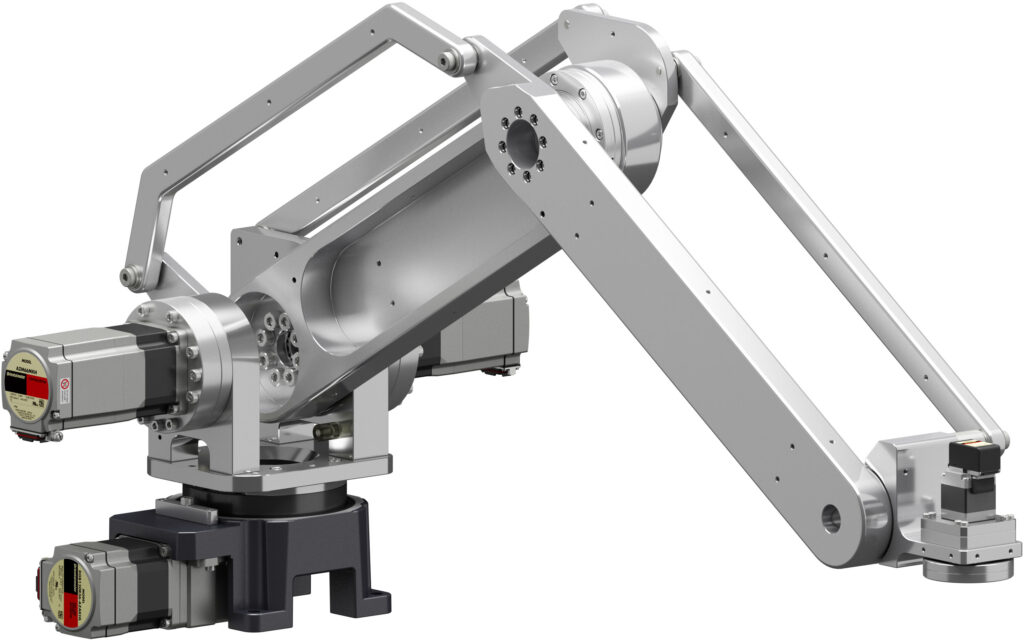

- Parallelogram mechanism
- Uniform horizontal transport with robot arm tip at the same height as the installation surface
- Maximum transport load 5 kg
- Maximum horizontal reach 480/680/880 mm
- Use of the AZ series with integrated, battery-free absolute encoder (for DC power supply)
The product division of Robots and controllers has been expanded to include a whole range of new products: small robots from the OVR series, new robot controllers and electric lifting columns.
Robot controllers
MRCU series
- Robot controller and driver of the AZ series (with up to 8 axes) integrated in one housing
- Compact size comparable to A4 format helps to save space
- Simple wiring
- Can be combined with OVR small robots, AZ series and actuators with AZ series motors
Electric lifting columns
EL series
- For extending the vertical working area
- Reduced time required for design, installation and commissioning
- High rigidity and high accuracy
- Stroke 50/100/200/300 mm
- Equipped with AZ series motors with battery-free absolute encoder
